| Details: |

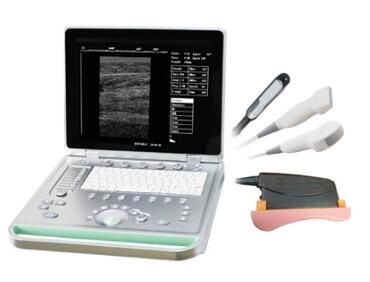

SS8 Vet, a cost effective B.W. system with good performance (color version is also available) specially for veterinary.
Technical Specification B&W mode: B, B&M, 2B, 4B
Gray scale: 256
Display: 15”LED monitor
Transducer frequency: 2-11Mhz
Digital technology: Wide-angle imaging
Panoramic focusing technology
Rolling M technology
Max scanning depth: 310mm
Imaging Processing Pre-processing: Cloud processing technology
8-segment TGC
Gain(B&W)
Dynamic range
Persistence
M Soften
Noise suppression
Post-processing: Image enhancement
Gray Map
Colorize Map
Tissue Specific Imaging
Left/right reverse
Up/down reverse
Functions
Cine-loop: 340 frame cine loop
Zoom: Stepless zoom for the active image
THI: Tissue Harmonic Imaging
Qopt: One-key Optimize
DICOM: DICOM3.0
Print: Report print for text & graph & image
Measurement & Calculations
B mode: Distance, angle, area, volume,
trace length, distance ratio
M mode: Distance, time, slope, heart rate
Software packages: Abdomen, OB, Gynecology, Cardiac
Standard Configurations Q6 B/W main unit
15”LED with high resolution: 1024*768
Two USB ports
One s-video signal output
One HDMI port
One power inlet
Three transducer connectors
Plenty of measurement & calculation software packages
Optional 6.5 MHz micro-convex probe(R15)
3.5 MHz convex probe(R60) 7.5 MHz linear probe(L40)
6.5 MHz transvaginal/transrectal probe(R13)
|
